How to import data on Qblade?
What is Qblade?QBlade is a multi-platform simulation software for wind turbine blade design and wind simulation.
it does not need any installation, as soon as it is installed on the computer you work directly on it How to import data Foils on it?
Step #1 NACA airFoils
click on : file >>New project >>foil >>naca foil just type number you want 4 numbers for NACA with 4 digits for example: >> 2412 for NACA2414 or 5 numbers For NACA with digits >>24152 for NACA24125 we can even custom design our Airfoil by changing the values if you won’t know how to see the tutorial.
Step #2 : Other airfoil types

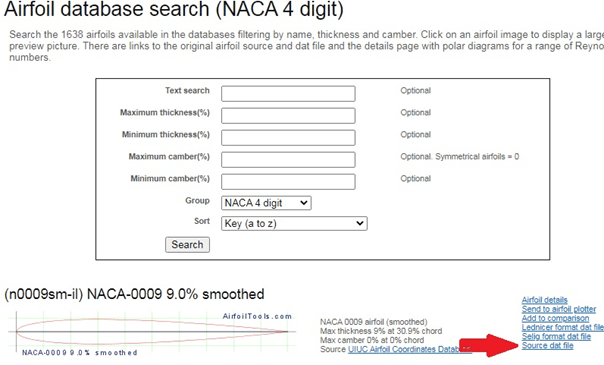

FOR Other airFoil Types: by importing a .dat fileGo to Airfoil database >> link/ http://airfoiltools.com 1-choose any type of Foil you want to download 2-when you choose a type. 3-choose a random type (NACA 5 or 4, A, S or Z) 4-right click on source dat.file 5-save link as 6-save file as .dat format 7-save them in one folder to find them after
